2024-2026 Honda CBR500R CB500F Sequential LED Tail Lights Clear

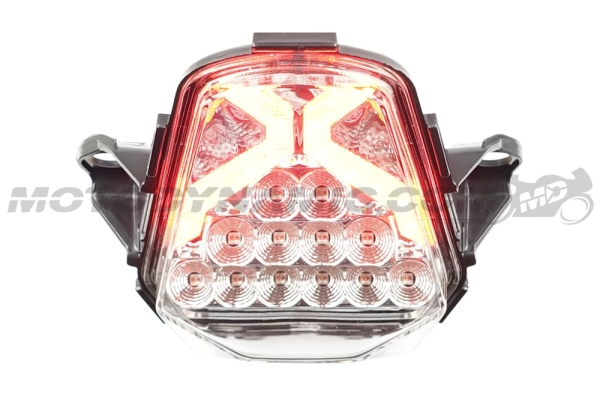

2024-2026 Honda CBR500R/CB500F LED Tail Light with Integrated Alternating Sequential LED Signals in Clear Lens
Dimensions:
- 135mm x 105mm x 135mm (Width x Height x Depth) measured at normal mounting position including housing.
Features:
- 14 ultra bright dual mode red SMD LEDs for running lights (light bars)
- 12 ultra bright dual mode red/yellow SMD LEDs for brake and turn signal lights
- Programmable features
- 2 Brake Light Modes: Stop Alert (Triple Flash - Default) and Standard
- 3 Turn Signal Modes: Sequential (Default), Reverse Sequential and Standard
- Chrome inner reflective housing + dual light bars
- Direct plug and play with included sub-harness (OEM connectors for 100% bolt-on)
- Resistors built into sub-harness
- Stop Alert - utilizes 3 quick red flashes when brakes are applied initially
- Sequential and Reverse Sequential alternating yellow LED turn signals
- Street Legal: N/A
- Warranty: 1 year
Designed with Stop Alert function added to increase motorist awareness when you are braking. Sequential LEDs flash in sequence in the direction you are turning or merging so there is no confusion which way you are going. New reverse sequential feature added - when signaling all LEDs activate for that side, then slowly turn off one column at a time. Hazard override feature shuts off the hazard lights when brakes are engaged and resumes when brakes are disengaged.
A microprocessor is use with an integrated circuit chip (IC) to control all the functions of park, brake, and sequential signals. All IC chips are micro soldered by machine to deliver consistent and reliable solder points.
>>>VIEW WIRING INSTRUCTIONS HERE<<<
Fits:
- 2024-2026 Honda CBR500R*
- 2024-2026 Honda CB500F*
- *Requires factory or factory equivalent front turn signals to maintain the proper flash rate
Video demonstrated on a 2024 CB500F and 2026 CBR500R. VC: Yusuf S. & Jayden H.
